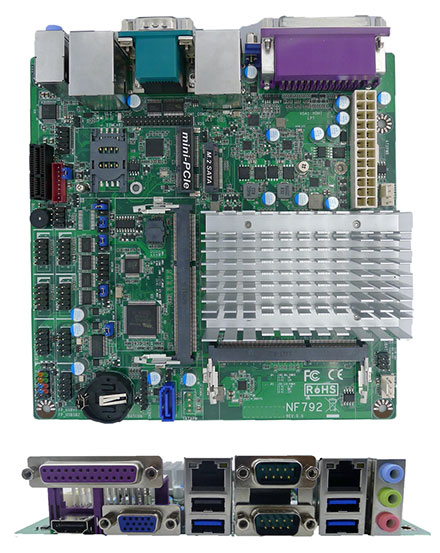

Jetway NF792R-3160 (Intel Braswell)

Jetway NF792R-3160 (Intel Braswell)
  • NF792-3160

  • Intel® Braswell N3160 Processor
  • Support DDR3L-1600, 2 * SO-DIMM slot, up to 8GB memory
  • Support AES NI & TPM (option) for security issue
  • Support HDMI/VGA/LVDS, triple displays
  • 6 * COM & 3 * USB3.0 & 7 * USB2.0 & 1 * PCIex1 slot
  • 1 * SIM Card Holder for 3G/LTE connection


Share

279.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

SSD (M.2 NVME):

Build/Install:
Form Factor
Dimensions – Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
Processor System
CPU – Intel® Braswell N3160 Processor
Core Number – 4
Max Speed – 2.24GHz
L2 Cache – 2MB
Chipset – SoC
BIOS – AMI Flash ROM
Expansion Slot
Mini-PCIe – 1 (full size)
mSATA – 0
PCIe – 1 * PCIe x1 slot
M.2 – 1 (M Key 2242/2260)
SIM Card Holder – 1
Memory
Technology – Dual CH DDR3L 1600MHz SDRAM
Max. – 8GB
Socket – 2 * SO-DIMM
Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 1
LVDS – 1 (Max Resolution : 1920×1080@60Hz)
HDMI 1.4 – 1 (Max Resolution : 3840×2160@30Hz)
MultiDisplay – Triple Displays
Ethernet
Ethernet – 10/100/1000 Mbps
Controller – 2 * Realtek® 8111H Gigabit LAN
Connector – 2 * RJ 45
Audio
CODEC – HD Audio : Realtek ALC662VD
Channel – Line-In, Line-Out, MIC
SATA
Max Data Transfer Rate – 1 * SATAIII (6.0Gb/s)
Rear I/O
VGA – 1
HDMI – 1
Ethernet – 2
USB – 3 * USB 3.0 & 1 * USB 2.0
Audio – 1 (Line-in, Line-out, MIC)
Serial / Parallel – 2 / 1 (COM1: RS232/422/485)
PS2 – 0
DC-input – 0
Internal Connector
USB – 6 * USB 2.0
PS/2 – 1
LVDS / inverter – 1
Serial – 4
SATA – 1 * SATAIII (6.0Gb/s)
mPCIe – 1 (full size)
mSATA – 0
M.2 – 1 (M key 2242/2260)
GPIO – 1 (8 bit)
Chassis intrusion – 1
Audio Header – 1
SMBUS/ I2C – 1
AT mode – 1
TPM Header – 1 (on board option)
SIM Card Holder – 1
Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments (10sec ~ 255min)
Power Requirements
Input PWR – ATX power in
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications – CE, FCC, LVD, RoHS, REACH
Environment
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
